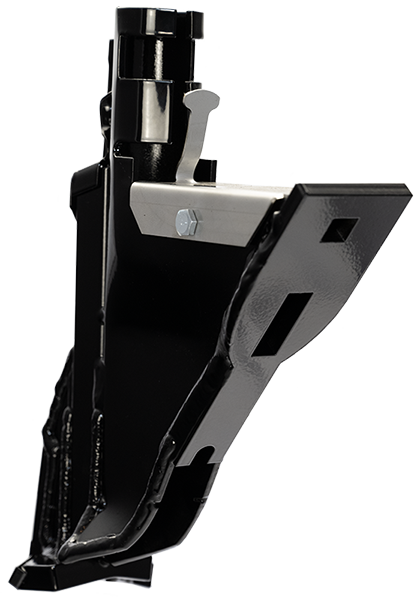

C-SHANK
HIGH-RATE SIDE BAND LIQUID
Brand Compatibility: Bourgault, C-Shank, Case IH, CNH, Concord, EEZE ON, Flexicoil, John Deere, Morris, New Holland
Product Inputs
The High Rate Side Band Liquid was designed as an extension of our High Rate Side Band Granular product line after customers approached Atom-Jet about the need for the application of higher rates of liquid fertilizer. This product offers optimal seed-fertilizer separation by placing the seed out behind the wing on one side of the opener with a newly designed chute, while directing the liquid fertilizer on the opposite side behind a wing pitched down to accurately place the product into the soil. This product is an excellent choice for higher-rate applications.
Why Choose?
- Seed and fertilizer are directed to opposite sides of the furrow for increased separation
- High application rates on same-plane with minimal increase in disturbance
- Large chute size allows for seeding of broader seeds
- Short opener profile allows furrow to close quicker behind the opener
Specifications
Opener Type
High-Rate Side Band
High-Rate Side Band
Shank Type
C-Shank
C-Shank
Shank Spacing
7.5" - 12"
7.5" - 12"
More Details
Find a Part Number
Point Size: 3/4"
Min. Packer Width: 3"
Seed Tube: 1-1/4"
Liquid Tube: 3/8"
Orientation: Right
Part Number: CCFTG3
Point Size: 3/4"
Min. Packer Width: 3"
Seed Tube: 1-1/4"
Liquid Tube: 3/8"
Orientation: Left
Part Number: CCFTF3
Point Size: 3/4"
Min. Packer Width: 3"
Seed Tube: 1-1/4"
Liquid Tube: 1/4"
Orientation: Right
Part Number: CCFTG2
Point Size: 3/4"
Min. Packer Width: 3"
Seed Tube: 1-1/4"
Liquid Tube: 1/4"
Orientation: Left
Part Number: CCFTF2
